200瓦24VDC 99AHR级1 Div 2太阳系

Availability:呼吁可用性

Features

SES C1D2标志
1级Div 2的太阳能系统

MAPPS Class 1 Division 2 solar system logo
第1级第2级太阳能系统

200瓦24VDC 99AHR级1 Div 2太阳系

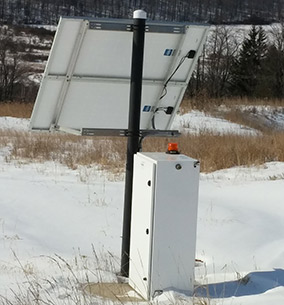

Class 1 Div 2 hazardous location solar power system
为1级Div 2危险地点设计和认证的太阳能系统。

Certified for Class 1 Div 2 Hazardous Locations

这种安全,可靠,耐用,坚固耐用的2电池Class 1 Div 2系统旨在需要最小的维护和长寿。二十年的设计生活(大约每五到七年的电池更换)。

C1D2认证太阳能电气系统have no moving parts. Solar Electric Supply deals only in modules and components with the highest international standards, such as Underwriters Laboratories (UL) and ETL Intertek listings in the US, and approval by the Commission of the European Communities (CEC) in Europe.

200W 24V Class 1 Div 2 Solar System w/ 2 8G27 batteries

battery enclosure charge controller installed包括预连接充电控制器。
机箱闩锁
closed battery box latch
Features two draw-latches that are lockable for up to a 3/8" max shackle.
  • 外壳预先组装和预接线,适用于质量控制和快速安装
  • Designed for 2”-4” SCH40 pole mount
  • System voltage: 24 volts DC
  • Solar module and regulator are UL listed and certified
  • Batteries are maintenance-free Deka Solar gel cell for deep cycle operation and extended life in solar applications
  • 电荷调节器包括低压断开(LVD)和温度补偿
  • Enclosures are powder coated aluminum for corrosion resistance and include padlockable hasps.
  • 电子产品是轩ed in a separate compartment
  • Circuit breakers are included as a means of disconnect and for short circuit protection
  • Systems use with SES Solar C1D2 certified PV module
  • 外部布线单独出售

Certifications

Class 1 Division 2 solar system
UL STD 508A

符合:ISA STD 12.12.01 & UL STD 508A. The UL STD 508 certification is required for Class 1 Division 2 Hazardous Locations.

Class 1 Div 2 Solar Power System Applications

无论地球上的极端环境是什么:北极,沙漠,沿海或热带,这种耐腐蚀的太阳能系统都是您的下一个遥控II级危险地点项目的理想选择。

C1D2 pipe for solar battery system

太阳能电池供电C1D2示例可包括:
flow measurement & monitoring, level measurement, oil and gas pipeline security, wireless communication, well site automation, cathodic protection, environmental monitoring, chemical injection pumps, SCADA and UPS battery backup systems.

联系我们今天您的太阳能供电。OEM定价可用。

拨打免费电话:(877)297-0014

190瓦24VDC 99AHR级1 Div 2太阳系

双击上面的图像以查看完整的图片

缩小
Zoom In

Specifications

SES MAPPS Class 1 Division 2 Solar System

Model Number MAPPS-199-99-24-C1D2
标称系统电压 24 VDC
太阳能光伏模块

SES 4200J24 Vdc 200 Watts

Solar Module Certifications UL 1703, Class 1 Division 2, Group A, B, C, D, Class C Fire Rating
PV Module Mount SPM1-190.side of pole mount
可提供130英里/小时170英里/小时的选择
Battery Type 2XDeka Solar 8G27凝胶细胞
Battery Capacity 24V 99 Ahr at 100 hour discharge rate
Enclosure Model AL-POL-2-G27-D2-HZ C1D2
机箱认证 UL Listed NEMA 4 Industrial Control Panel Enclosure w/ NEMA 3R Battery Enclosure
充电控制器 Sunsaver SS-20L-24V
控制器认证 第1级DIV 2组A-D和UL 1604和1741的ETL
MAPPS系统重量W /电池 225 lbs.
起源 美国
价格 $ 5,866.00
UL STD 508A
可选的UL C1D2列表可用

制造商规格表

Details

MAPPS 200 Watt 24 Volt Class 1 Div 2 Solar System with 2 Batteries Review

C1D2 battery box enclosure review
