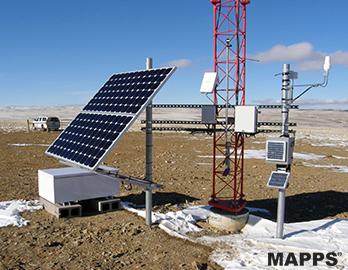

600 Watt 24VDC 530Ahr Pad-Mounted Solar Panel System

ReliableWeatherproofSolar Panel System

This highly reliable, durable, and rugged four-battery system is designed to require minimal maintenance with a 20 year design life (with battery replacements approximately every five to seven years). Our systems are assembled and tested following strict QA/QC procedures, and are designed to IEEE Standard 1562: Guide for Array and Battery Sizing in Stand-Alone Photovoltaic (PV) Systems.

MAPPS pad-mounted solar panel systemsinclude components with the highest quality standards and qualify for Made in USA, Buy America and ARRA. MAPPS systems are also available with UL Listing or Class I Div 2 approval.

600 Watt 24V Pad-Mounted Solar Panel System

Solar Panels

• High efficiency crystalline silicon
• Meets JPL Block V durability criteria
• Tempered glass and aluminum frame
• Conduit ready junction box or MC 4 connectors

Gel Cell Sealed Batteries

• Sealed maintenance-free
• Excellent deep-cycling performance
• Immobilized electrolyte, non-spillable
• Transports easily and safely

System Enclosure

• Aluminum construction
• Powder coated enamel white paint
• Filtered louvered vents
• Insulation Kit for battery
• Controller mounted on DIN rail with array/battery/load breakers

Balance of System Components

• Heavy duty aluminum mounting structure
• Controller with low voltage battery protection
• Optional 130 and 170 MPH available
• Color-coded, pre-cut wiring harness
• Easy-to-follow manual/system schematics

Optional Components

• DC to DC converters for 12, 24, 48 VDC loads
• DC to AC inverter for 120 VAC loads
• Radio shelf for additional load equipment
• Pre-wired PoE Power over Ethernet injectors

MAPPS Off-Grid Solar Panel System Applications

No matter what extreme environment on Earth: arctic, desert, coastal or tropical, this corrosion-resistant solar power system is ideal for your next remote off-grid solar project.

Solar battery powered examples can include:

4G LTE ruggedized gateways Digi Transport WR31 (Xmt/Rcv) Axis Q6000-e Mid 50vdc ScadaPack 32 (in-use) Solenoid Valves

Emerson Series 5700 Meter Device Server DNGP Controller (in-use) UPS battery backup systems MDS SS9 Radio

Contact uswith your solar powered application today! OEM, Distributor, System Integrator, Government, VAR, Dealer, Contractor, MWBE, International, and Reseller discounts available.

Call toll-free: (877) 297-0014
