MAPPS SPM1-Multi Side of Pole Solar Panel Mount

Availability:呼吁可用性

Features

远程太阳能杆山阳光
mounts for remote solar panel systems

MAPPS离网遥控太阳能系统
太阳能电池板安装结构

MAPPS SPM1-Multi Side of Pole Solar Panel Mount

杆安装的单个太阳能电池板侧

Solar Electric Supply offers industrial solar panel pole mounting structures for a wide variety of solar panels and client applications.

With重型铝制支撑和stainless steel hardware这种坚固的侧面PV安装座可提供标准的90英里/小时，可选的130英里/小时的风额定值。可以提供标准或定制硬件，用于连接杆或塔架结构

These are designed for our 40 watt - 90 watt PV modules and many manufactured by BP Solar and Ameresco like the: SX350J, SX365J & SX390J.

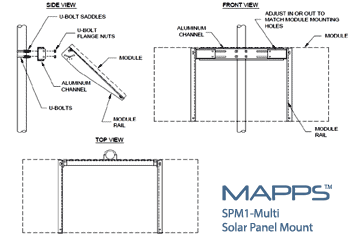

SPM1-Multi侧杆安装细节

side of pole solar panel mount side view
  • Series 5000 or 6000 mill finish aluminum
  • Anodized or powder coated available
  • TIG welded aluminum channel
  • 不锈钢模块安装硬件
  • 不锈钢带夹
    (U-bolts available for most pole sizes)
  • Module specific design reduces parts and labor
side of pole mount review
Array Tilt Angle Selection
Site Latitude
（以度为单位）		 固定倾斜角度
0° to 15° 15°
15° to 25° 与纬度相同
25°至30° 与纬度+ 5°相同
30° to 35° 与纬度+ 10°相同
35° to 40° 与纬度相同+15°
40° + 与纬度+ 20°相同

Selecting Your Solar Array Location

杆安装倾斜角

Locate array in an unshaded area facing the equator and tilted from the horizontal at the desired tilt angle (refer to table on right).

Solar arrays in the Northern Hemisphere face South for optimum energy production. Solar arrays in the Southern Hemisphere face North.

When choosing a site, avoid trees, overhead power lines, buildings or obstructions which could cast shadows on the solar modules. This is especially true during the winter months when the arc of the sun is lowest to the horizon.

联系我们免费免费：(877) 297-0014

MAPPS SPM1-Multi Side of Pole Solar Panel Mount

双击上面的图像以查看完整的图片

缩小
Zoom In

Specifications

side of pole solar panel mounting bracket header
SES MAPPS Side of Pole Solar Panel Mount
Model Number SPM1-MULTI
Solar Panel Compatibility Supports one 40-90W J series or VLS 40-90W
Tilt Range 30°-90°
钢管尺寸 2"-4" (custom sizes available)
Wind Speed Rating 90英里/小时（可用130英里/小时）
Weight 10 lbs.
Dimensions 11.5"H X 6.25"W X 2"
Warranty 1 year limited warranty
起源 美国

off-grid solar radio system
Remote Off-Grid Solar Power Systems

Details

离网太阳能系统
Off-grid Solar Systems

乐动安卓appspecializes in supplyingdealer,contractor,政府和工业的全球账户reliable, cost-effective solar electric power solutions.

乐动体育 ·杆支架的一侧

联系我们免费免费：(877) 297-0014for expert assistance and wholesale prices for theSES MAPPS SPM1-Multi solar panel side of pole mount.
