Deka Unigy II 3AVR75-17 Spacesaver Battery System Module

Deka Unigy II 3AVR75-17 Spacesaver Battery System Module

Availability:Call For Availability

Features

Deka Unigy II 3AVR75-17 Spacesaver™ Battery System Module

TheDeka Unigy II3AVR75-17Battery byEast Penn Manufacturingfeatures 3x AVR75 battery cells with 17 plates per cell. This battery is designed for 6 volt systems and features a 840 AHr capacity @ 100 hour rate.

A complete module system utilizes one of two types of bases for easier transport and installation.

Unigy II Spacesaver Module Options

The Unigy II Spacesavers are available in two models:

Complete Unigy II Spacesaver™ Interlock™ Module Battery System (shown with 3-cell modules)

One-Piece Base Interlock- This module requires only front access bolts for mounting. This module option meets UBC 97 (Interlock™ only) Zone 4 top of building requirements. These Interlock Modules are certified to 8 modules high, top of building.
Three-Piece Base Non-Interlock- This module has front and rear access bolts for mounting. This Non-Interlock model meets UBC 97 Zone 2B top of building requirements – Zone 4. These Non-Interlock Modules are certified up to to 8 modules high on ground level.

Battery Termination

Front termination is standard.

Top terminationwill add 7.75" to the overall height.

Side terminationwill add 4.5" to each side for termination.

Unigy II 3AVR75-17 Battery Features & Benefits

Container and Cover	Impact-Resistant Polypropylene, UL 94 V-0, 28% L.O.I.
Separators	Microporous Glass Mat
Individual Plate Formation	Shipped at 100% Capacity
Cycle Life	2400 cycles @ 20% DOD

The dimensions on the left are represented by the images below:

AVR75 Module Review

Interlock™ vs. Non-Interlock Modules

The patented design of the Interlock™ Module allows for front access bolting. Rear bolting is required for three-piece base non-interlock modules. The dimensions and weight of each are slightly different.

Deka Unigy II 3AVR75-17 Spacesaver Battery System Module

Double click on above image to view full picture

Specifications

Unigy II Model Number	3AVR75-17
Module Voltage	6 Volts
细胞的数量	3
Number of Plates per Cell	17
Cell Voltage	1.75
Capacity @ 25 Hr. Rate	720 AHr
Capacity @ 100 Hr. Rate	840 AHr
Interlock Module Length	21.90 in.
Interlock Module Depth	25.25 in.
Interlock Module Height	9.54 in.
Interlock Module Weight	370 lbs.
Non-Interlock Module Length	21.90 in.
Non-Interlock Module Depth	24.5 in.
Non-Interlock Module Height	9.48 in.
Non-Interlock Module Weight	355 lbs.

Deka Unigy II Spacesaver US Made battery

Manufacturer Specification Sheets

East Penn Manufacturing Deka Unigy II Spacesaver BrochureSize: (998.3 KB)
Deka Solar Unigy II Battery Module ModelsSize: (343.86 KB)
Deka Unigy II Spacesaver System Module DimensionsSize: (97.33 KB)
Deka Unigy II Spacesaver Installation ManualSize: (1.33 MB)

Details

Deka Unigy II Spacesaver is the Dependable Choice

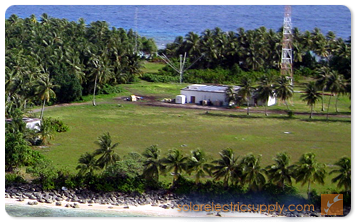

unigy II spacesaver battery system powering a microgrid on an island

Deka Unigy II Spacesaver battery systemsare constructed using the finest quality materials and state-of-the-art manufacturing techniques and are known for their high reliability and superior performance. They are ideal for larger, battery-based solar systems that demand high performance and a long cycle life.

This line ofUnigy IIbatteries utilizes a smaller footprint to save space while providing optimal power. The new reduction in space enables less restriction for ground and vertical space confinements and meets UBC 97 Zone 4 (Interlock™ only) specifications, certified up to 8 modules high. Assembly is quick and easy with a simplified, yet advanced layout configuration and “two-way” post design allowing quick connector assembly and optimized current transfer.

Unigy II 3AVR75-17 battery powered applications:

ThisUnigy II battery, when combined with others in acomplete Spacesaver system, is ideal for powering telecommunications, island power, cellular radio, microgrid, remote wi-fi, railroad signs/communication, remote residential, grid-tie battery backup, and uninterruptible power sources (UPS).

Unigy IIbattery cell

The 3AVR75-17 features built-in advanced features such as:

“Two Way” Post design is lead plated solid copper providing a large contact area with front access bolting for easier installation and maintenance.
Pure Virgin Lead (99.99%) positive grid alloy is very resistant to corrosion/growth.
Positive and Negative plates are formed with IPF® technology to ensure plates operate at 100% capacity.
Collapsible bottom bridge accommodates for normal plate growth, reducing stress on battery post seals.
Air Gap between cells has been designed to reduce foot print while maintaining required cooling.
安全保护设计容易幻灯片和前面f without tools for quicker assembly.

EPM Unigy II products are designed to meet the requirements of IEC 60896-21/22, BS 6290 and SR-4228.
Expected life of a properly maintained Unigy II system can be up to 20 years.

Complete Unigy II Spacesaver Systems

Quantity Deka Unigy II battery module discounts & complete systems available.

With decades of experience, Solar Electric Supply has the friendly, knowledgeable staff for just about any large battery powered project.

Contact ustoll-free:(877) 297-0014

乐动体育 •Unigy II Spacesaver Battery System Modules

Contact usfor sales, quantity discounts and expert reviews for theDeka Unigy II 3AVR75-17 Spacesaver battery system module.
