Outback Flexware 250.

Availability:呼吁可用性

Quick Overview

Outback Power Systems Flexware 250是太阳能和备用电源的实惠解决方案。对于具有适度功率要求的应用,如舱室,远程通信站点和备用电源系统。

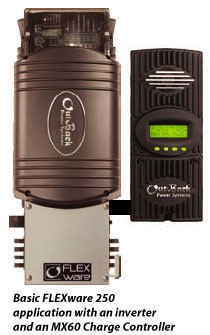

The FLEXware 250 accommodates all of the essential protective devices in the smallest possible space at the lowest installed cost. Utilizing an extremely compact design and unique mounting features, one or two FLEXware 250 enclosures can be mounted on each end of a single FX Series Inverter/Charger.

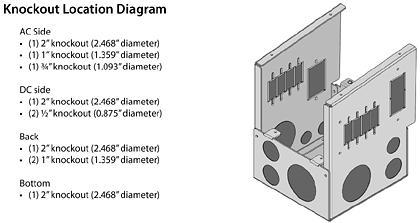

TheFlexWare 250外壳是粉末涂层铝合金的地,已列出ETL。它为电池,PV阵列或PV GFP断路器提供断路器空间,以及用于AC GFCI出口,AC断路器甚至输入输出旁路组件的安装位置。在保持FlexWare的哲学中,这种配置的灵活性在慷慨数量的敲门房中是显而易见的,导管,电缆腺和其他安装配件的安装。



Designed to survive in outdoor environments, the rainproof, UL type 3R powder coated aluminum chassis can be mounted on a wall, sloped roof or pole. The unique angled negative terminal bus bar design makes wiring fast and easy without the larger output conductors blocking access to the smaller input terminals. Dual output lug terminals are included for up to 2/0 AWG conductors. The tinted flame-retardant polycarbonate deadfront panel creates a clean appearance while preventing accidental contact with the live terminals and is easily removable during installation.


Outback Flexware 250.

双击上面的图像以查看完整的图片

缩小
Zoom In

更多观点

Details

Description

模型
单元尺寸(H x W x D)
运输尺寸(H x W X L)
Shipping Weight
机箱类型
FW250 7.5 x 6.5 x 8.6"
(19.1 x 16.5 x 21.8cm)
9.75x 8.4x 11.6"
(24.8x 21.3x 29.5)
5磅。(2.3kg) Type-1 indoor(IP30)

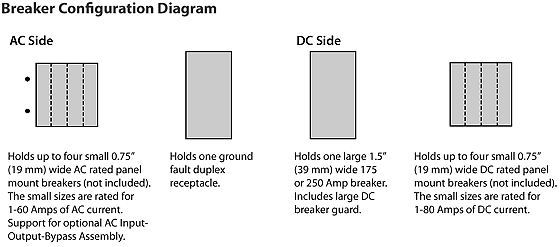

•Holdsup to eight 1 to 80 Amp, one 175 or 250 Amp panel mount breaker and a GFCI AC outlet (not included).
•不使用DCA或ACA连接到FX逆变器/充电器。
• DC current shunt not included

FLEXware 250 enclosures

FlexWare 250 AC输入输出旁路组件

Field installable kit for bypassing the AC input to the AC output for inverter maintainence or installation. Also provides over-current protection.

模型: FW-IOB-S-120VAC

Includes:Three 60A 120VAC single pole PANEL mount breakers, sliding bypass interlock plate, wire and hardware kit

System Rating
Bypass Breaker
Input Breaker
输出断路器
单相120Vac.
60 Amp 7.2 kW
在e Pole @ 60 Amps 7.2 kW 在e Pole @ 60 Amps 7.2 kW 在e Pole @ 60 Amps 7.2 kW
