XW MPPT 80 600太阳能充电控制器

Availability:呼吁可用性

Quick Overview

The XW MPPT 80 600 is an innovative solar charge controller that offers an industry-first set of features: high PV input voltage (up to 600 Vdc), Maximum Power Point Tracking (MPPT), and 80 A charge current. 600 Vdc PV input voltage delivers lower installation costs through fewer PV strings, longer home runs, smaller wiring and conduit, and virtual elimination of PV combiner boxes and circuit breakers. MPPT technology helps harvest the most energy available from the PV array, regardless of environmental conditions. 80 A battery charge current allows for connection of arrays rated at up to 4800 W (48 V battery bank).

Features

最多600 VDC输入。

Full Power Range: 230 to 550 Vdc.

工作范围：195至550 VDC。

MPPT范围：195至510 VDC。

PV Array Start Voltage: 230 Vdc.

80 A Output; 48 V or 24 V Battery (nominal).

Full Power (4,800 W; 2,560 W) up to 45 C (113 F).

快速扫描MPPT算法。

Two- or Three-stage Battery Charger, Plus EQ.

电池类型设置：FLA，AGM，GEL，CUSTOM。

Battery Temperature Compensation.

效率高：96％NOM @ 48 V;94％NOM @ 24 V.

低皮重损失（0.5 W; Xanbus电源关闭）。

Built-in GFP and Indicator.

Input Over-voltage and Over-current Protection.

Output Over-current and Back-feed Protection.

Over-temperature Protection.

光伏电池相容性：单体，聚，弦，薄膜。

可选择的PV阵列接地：（+），（ - ）或未接地。

Positive or Negative System Ground.

Xanbus Compatible with AGS, Gateway, SCP, and XW.

AUX Output (dry contact, form “C”).

PDP Mounting Compatible (30” x 8.5” x 8.5”).

Variable Speed Cooling Fans.

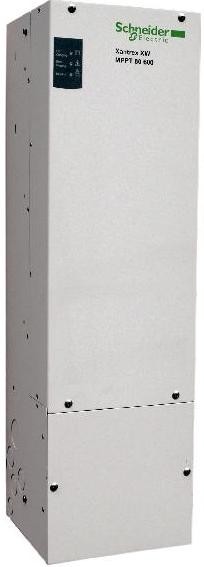

XW MPPT 80 600太阳能充电控制器

双击上面的图像以查看完整的图片

Details

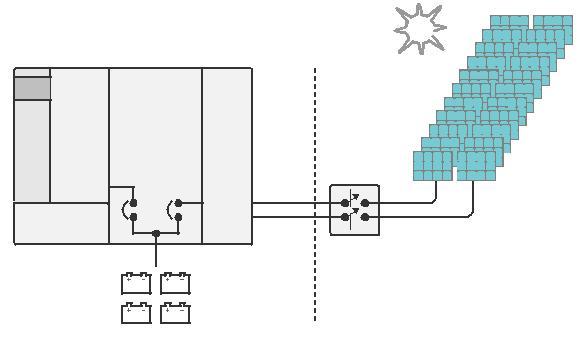

典型系统配置

Electrical specifications

Nominal battery voltage	24和48 V（默认为48 v）
最大限度。PV array voltage (operating)	195 to 550 V
最大限度。PV array open circuit voltage	600 V
最大限度。PV阵列输入电流	35 A
最大限度。and min. wire size in conduit	#6 AWG to #14 AWG (13.5 to 2.5 mm2)
Charger regulation method:	Three-stage(bulk, absorption, float)
Charger regulation method:	Two-stage(bulk, absorption)

General specifications

功耗，夜间	< 1 W
外壳材料	室内，通风，铝板底盘，22.22毫米和27.76毫米（7/8英寸和1英寸）敲除和铝散热器。
外壳材料
Product weight	13.5千克（29.8磅）
装运重量	17.4 kg (38.3 lb)
产品尺寸（H X W X D）	76 × 22 × 22 cm (30 × 8.625 × 8.625 in)
Shipping dimensions (H x W x D)	87×33×27厘米（34.3×13×10.6）
Device mounting	垂直墙壁山
Ambient air temperature for operation	-20°C.to 65°C （-4°Fto 149°F), power derating above 45°C
Storage temperature range	-40°Cto 85°C (-40°F到185°F）
经营高度	Sea level to 2000 m (6562 ft)
Warranty	五年standard
Part number	865-1032

Regulatory approvals

Certified to UL1741: 2nd Ed and to CSA 107.1-01;CE
