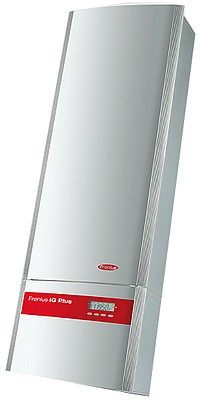

Fronius IG Plus 10.0 Inverter

IG Plus Series Inverters
+ Maximum Earnings Security
+ Highest Reliability
+ First Univerlal Inverter

This three power stage inverter is available in 10.0, 11.4 and 12.0 kW. Best suited for large residential and commercial applications.

Available IG Plus Three Stage Inverters:

· 10.0-1 UNI
· 11.4-1 UNI
·11.4-3三角洲
·12.0-3 WYE277

Equipment features

现场可选择接地。
现场确定所需接地类型，因为Fronius IG Plus可现场编程用于正极或负极模块接地。

Designed for indoor and outdoor installations.
All Fronius IG Plus inverters have a robust, well designed aluminum housing. UV resistance and corrosion protection enable them to be used either indoors or outdoors. Fronius is proud to be one of the only inverters tested and approved to operate at 122

Integrated DC disconnect.
No external DC disconnect installation or cabling is necessary. The Fronius IG Plus comes complete with an approved, built-in, lockable and load breakable DC Disconnect.

The new power plug system.
The connection area and power stages are installed separately from each other. Very easy and extremely safe: The connection area is attached to the wall as normal. Then the power module is simply plugged in. The power plug connects both parts into one secure unit. If service is required, the connector remains on the wall maintaining all settings and configurations.

Field Programmable AC output voltage.
Fronius IG Plus逆变器线路从3.0到11.4 kW，可现场编程为208、240或277伏（Fronius IG Plus 12.0 kW仅在277伏时可用），无需安装不同的逆变器型号以适应三相安装。

技术
Three efficiency peaks.
Greater power harvest for every system size: The unique automatic transformer switching function of the Fronius IG Plus makes enables not one, but three equal efficiency peaks. The result: Consistantly high efficiency over a wide input voltage range.

相比之下，无变压器切换的逆变器效率随着输入电压的增加而稳步下降。没有变压器的设备只有一个效率峰值。

With a 96.2 % maximum efficiency, the Fronius IG Plus series scores the highest grade among HF devices.

混合™ 概念。
Get the maximum power harvest out of partial load ranges, e.g. on cloudy days, through a clever combination of multiple power stages in each inverter. The power stages in Fronius inverters divide up the work depending on operating hours and only operate as many power stages as required to efficiently process available power from the PV array.

Module Manager™.
The Module Manager keeps all Fronius IG inverters at the maximum power point (MPP) with fast and exact MPP tracking, ensuring that you get the most power out or each ray of sunlight. This is especially important for amorphous modules whose MPP can be more challenging to track.

智能通风设计。
破坏性的环境因素，如灰尘或湿气留在外面：原因：冷却空气被吸入墙壁一侧，并通过散热器上方的封闭通道。这可防止与电路板接触。同时，组件保持冷却-设备运行稳定一致。
