Schneider Electric Conext XW Connection Kit

Availability:Call For Availability

Features

Schneider Electric Solar logo

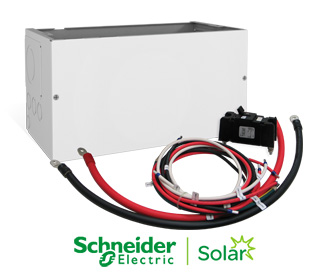

Schneider Electric Conext™ XW Connection Kit INV 2 INV 3 PDP

The Schneider Electric XW Connection Kit for a second inverter (part number 865-1020) is the extension kit required for connecting a second or third XW Inverter/Charger in the XW Power Distribution Panel (PDP).

Included Parts

  • XW Conduit Box
  • Three 60 A, 120/240 Vac, two-pole, Square-D, Type QOU, Din-Rail
  • mountable, AC breakers Custom designed bypass interlock plate
  • #6 AWG AC wiring to connect the inverter to the AC breakers
  • Four power distribution bus bars (replaces factory-installed bars) One GJ250A 160 Vdc, 3/8” stud DC breaker
  • One bus bar for DC positive
  • One pair #4/0 AWG battery cables
  • AC Sync and Xanbus™ cables
XW Installation Kit INV 2 INV 3 PDP 865-1020-01

Schneider Electric Conext XW Connection Kit - 865-1020-01

Double click on above image to view full picture

Zoom Out
Zoom In

Specifications

Conext XW
XW+ Connection Kit
Schneider Electric
Product Number
865-1020-01
Weight 7.9 lbs.
Width 16.0 in.
Height 8.5 in.
Depth 8.3 in.
