S-5! CorruBracket 100T

S-5 CorruBracket 100T & 100T Mini

S-5! CorruBracket 100T is the right way to attach solar panel arrays to common corrugated roofing profiles.Solar panel mountingis accommodated viarailorDirectAttached™ methods.Contact us专家建议。

The standardCorruBracket 100Tis 1-3/4" long with4 mounting holes. TheCorruBracket 100T Miniis shorter and has2 mounting holes.

The CorruBracket 100T is affixed to the crest of the corrugation, leaving the drainage plane free of holes to protect against leaks. For medium-duty applications, the bracket can be attached directly to the sheeting, accommodating ancillary attachment anywhere along the corrugation. For heavy-duty applications, the bracket can be fixed into the underlying substrate for additional support without crushing the corrugation.

Having no messy sealants to apply, CorruBracket 100T comes with afactory-applied EPDM rubber gasket sealalready on the base, and the S-5!®-patented reservoir conceals the EPDM from UV exposure, preventing UV degradation.

The slotted top hole, which accommodatesstandard M8 nuts and bolts, simplifies alignment and maximizes flexibility in attaching ancillaries. A structural aluminum attachment bracket, CorruBracket 100T is compatible with most common metal roofing materials. S-5!'s holding strength is unmatched in the industry.

CorruBracket 100T Mini The CorruBracket™ 100T Mini is a bit shorter than its standard counterpart and hastwo pre-punched holesin its base rather than four. The 100T Mini is a common choice for attaching the S-5-PV-Kit.	CorruBracket 100T Miniillustratedwith S-5-PV Kit.
Other corrugated metal roof solar panel mounts with rails or S-5-PV Kit available. Contact our solar design specialists.

---

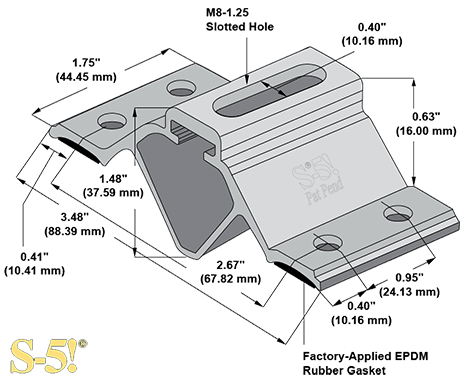

CorruBracket 100T Dimensions

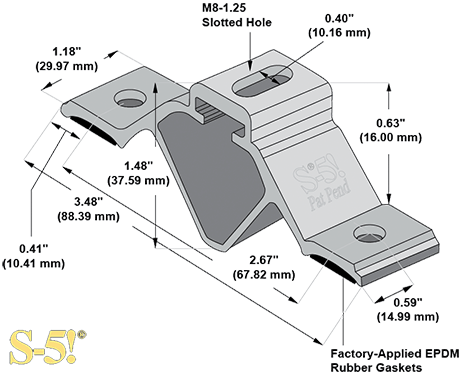

CorruBracket 100T Mini Dimensions

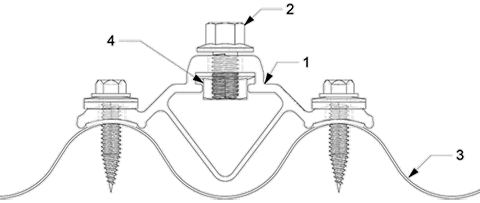

1. CorruBracket 100T Mini 2. M8-1.25 Bolt 3. Roof Panel Sample 4. M8 Hex Flange Nut

---

CorruBracket Installation Review

All CorruBrackets are mounted directly into the crest of the corrugation, straddling the valley. No surface preparation is necessary; simply wipe away excess oil and debris, align, and apply. Secure directly into the crest of the corrugation by driving the appropriate screws into the pre-punched holes, or pre-drilling the proper-sized hole through the pre-punched holes and riveting.

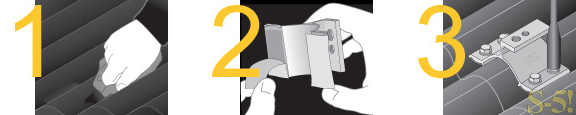

Installation steps shown with CorruBracket 100T. The "Mini" version has two mounting holes.

For design assistance and wholesale CorruBracket 100T prices,contact ustoll-free: (877) 297-0014.

Literature

S-5! CorruBracket Information S-5! CorruBracket Installation Instructions
