S-5! VersaBracket

TheS-5! VersaBracket™ is a simple and cost-effective way to mountsolar panel railsor theS-5-PV Kitto all types of exposed-fastenedmetal roofing. There are no messy sealants to apply. The factory-applied butyl sealant creates a waterproof bond that makes installation easy. The S-5!® patented reservoir conceals the sealant from UV exposure, preventing drying and cracks making your quick installation last for years to come.

Strong and Versatile

VersaBracket is so strong, it will easily support heavy-duty applications like large solar panel arrays, even on exposed-fastened trapezoidal metal roofs. The VersaBracket may be used with corrugated roofs when coupled with theCorruBracket™. VersaBracket™ can be used to mount almost any solar panel array to practically any exposed-fastened metal roof system. The VersaBracket has been tested for load-to-failure results on wood decking, metal, and wood purlins. VersaBracket is extremely economical and facilitates quick and easy installation.

Simple VersaBracket Installation

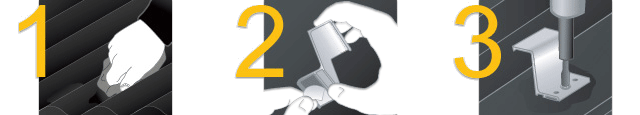

The VersaBracket is mounted in the flat of the panel, directly into the supporting structure of the roof, i.e. wood decking, wood or steel purlins or trusses. No surface preparation is necessary; simply wipe away excess oil and debris, peel the release paper from the base, align, and apply. Secure through the pre-punched holes using the appropriate screws for the supporting structure.

---

Learn more about S-5! Solar PV Mounting Systems

---

Choose from two VersaBracket sizes

To accommodate various rib heights, VersaBracket™ comes in two heights: the 2.65" VersaBracket-67™ and the 1.86" VersaBracket-47™. The VersaBracket-67 mounting face has no holes or slots; thus, ancillary items are typically secured using self-tapping screws. The VersaBracket-47 comes with a 1" slot on top as the standard part. Other hole and slot configurations available with minimum purchase requirements (contact your distributor for available configurations). Each VersaBracket comes with factory-applied butyl sealant in the base. A structural aluminum attachment bracket, VersaBracket is compatible with most common metal roofing materials. For design assistance, ask your distributor, or use our web-based calculator at www.S-5.com for job-specific system engineering and design of your next snow retention project. Also, please visit our website for more information including CAD details, metallurgical compatibilities, and specifications.

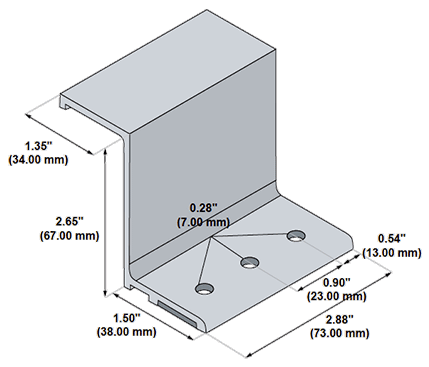

VersaBracket-47™ Dimensions	VersaBracket-67™ Dimensions

3 holes are provided for versatility. Some installations require only 2 fasteners. Due to varied applications, mounting hardware is not furnished with the VersaBracket.

Literature

S-5! VersaBracket-47 & VersaBracket-67

Contact ustoll-free: (877) 297-0014 for design assistance and low wholesale VersaBracket prices.
