Alps ATI-2000(220) Solar Modules

Availability:Call For Availability

Features

  • 220 watt multicrystalline silicon photovoltaic module
  • High power module using 6in multicrystalline solar cell
  • Bypass diode is attached minimize power reduction caused by shade
  • 60 solar cells and connection in series
  • Using optical low iron tempered glass, EVA resin, module for outdoor use
  • ±5400 Pa testing load, extended test to CNS13972 for wind and snow loads
Quantity discounts available!
Call toll-free(877) 297-0014for more information or to order.

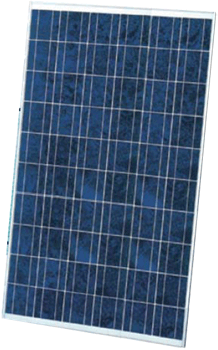

Alps ATI-2000(220) Solar Modules

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Manufacturer Specification Sheets

Details

Alps ATI-2000(230) Solar Modules

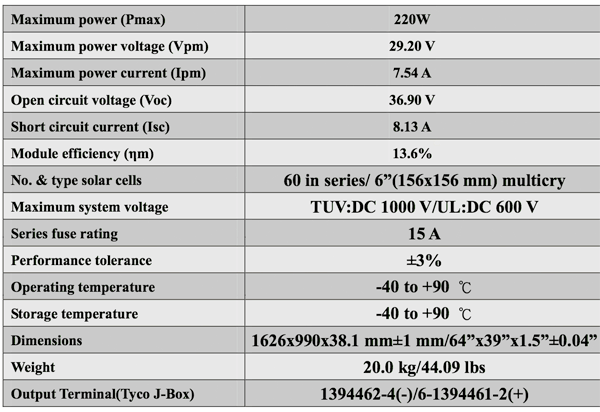

ATI-2000(220) Specifications
Alps ATI-2000(230) Solar Panel Specifications

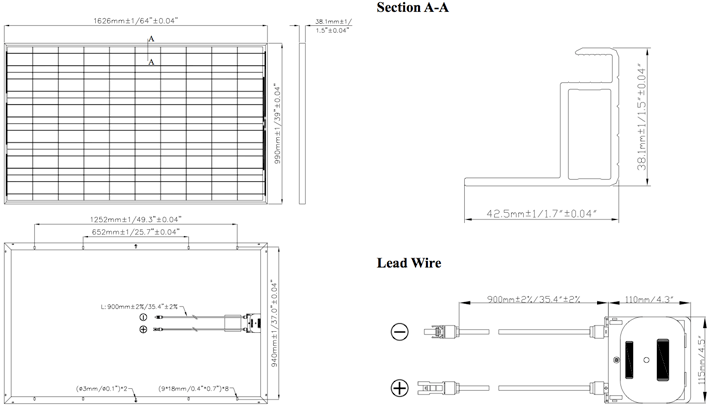

ATI-2000(230) Dimensions

Alps ATI-2000(230) Solar Panel Dimensions
About ATI
阿尔卑斯山的主体技术公司(ATI)been involved in the design, fabrication and distribution of sophisticated electronics since the 1980’s. The Los Angeles- based company has, most recently, focused their expertise to produce and distribute superior Photovoltaic (PV) products. With over 12 years as an OEM, manufacturing compact discs (CD’s) and personal computers (PC’s), ATI was well positioned to enter the emerging PV industry. ATI commenced manufacturing and distribution in 2002 after several years of product design and testing. ATI core products- are the result of development by a group of PV industry professionals who, between them, have over 120 years experience in the design, manufacturing and marketing of Photovoltaics. ATI products are designed to be used in the harshest of environments. Applications include residential, commercial, industrial and telecommunications. Product types include High Efficiency Cells, Framed Standard Modules, Building Integrated Modules (BIPV) and customized products. Manufacturing Facilities – ATI modules are manufactured in Taiwan, by a well known OEM electronics company, and branded ATI for the US market. Several, brand name, PV manufacturers use the same facility to produce some of their modules. The factory is a state of the art and fully automated facility. Most brands from mainland China still use manual assembly facilities. The quality of ATI modules is superior to lower quality Chinese brands due to their respective manufacturing processes.
