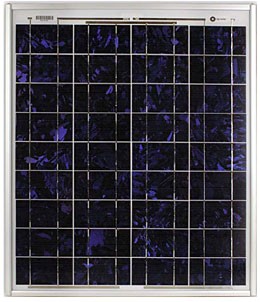

BP Solar BPSX320太阳能电池板

The BP SX 320 photovoltaic module is part of BP Solar's SX module series, providing cost-effective photovoltaic power for DC loads with moderate energy requirements. With 36 multicrystalline cells in series, this panel charges batteries efficiently in virtually any climate.

该模块的典型商业应用包括远程遥测，阴极保护，仪表系统，安全传感器，信号，石油计量，水计量，住宅门和基于陆地导航辅助工具。

1.通用框架模型（SX320J）具有接线盒和非常坚固的框架。接线盒接受电缆或导管。标准终端接受8 AWG至14 AWG电线。SX 320J的Raintight（IP65额定）接线盒接受PG13.5或1/2“标称导管或电缆配件。它具有四个端子连接块，它使大多数系统阵列连接（将模块串联或并联）实现到在接线盒中右转。

multimount2。The Multimount Frame version (SX320M) has a AWG# 18 2 conductor 15' cable for convenient 12 volt battery charging (an inexpensive charge regulator is recommended). The SX 320M can also be configured in series for a nominal 24VDC system.
