Day 4 Energy 48MC Series Watt solar module

Availability:Call For Availability

Features

  • World's leading quality custom designed and manufactured multi-crystalline PV cells
  • Day4™ Electrode high efficiency cell interconnection technology
  • Increased electrical contact redundancy
  • Premium power density
  • Customer-driven product design
  • Refined appearance
  • Zero tolerance quality
  • Commitment to customer satisfaction
  • Strong performance in low light conditions
  • Module efficiency up to 14.7%
  • 25 Year Power Warranty
  • 5 Year Product Warranty

Benefits

  • More power from less space: exceptional power density offers leading performance in its class and helps to boost system performance even under space constraints
  • Reduced systems costs: customer-inspired product design, fewer modules needed to complete the project, all help to reduce installation time and effort
  • No need to compromise: sophisticated appearance and meticulous attention to details; capable of satisfying some of the highest aesthetic requirements
  • Worry-free power: designed and manufactured in Canada to exacting standards, our product offers extreme durability and premium materials. The Day 4 solar panel company is committed to customer satisfaction, providing worry-free use in some of the harshest climates

Day 4 Energy 48MC Series Watt solar module

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Manufacturer Specification Sheets

View FileDay4 specificationsSize: (1013.95 KB)

Details

Day 4 Solar Module

Day4 Energy
The Day4 Energy 48MC Premium Solar Panel line has a 3.5% performance tolerance, up to 14.7% efficiency,
5 year product warranty and a 25 year performance warranty.

Day 4 Energy 48MC Series Watt solar module

Exceptional Power Density

  • Day4's proprietary cell interconnection technology enables more efficient collection of electrical power within the module, resulting in class leading power density
  • Module efficiency up to 14.7% (MC48 190)

Superior Aesthetics

  • Optional black anodized aluminum frames minimize visual disruption caused by arrays
  • Highly uniform cell appearance with negligible "white space" further enhances visual integration with surroundings

Convenient Mechanical Features

  • Output cables utilizing Tyco Solarlok interconnection hardware speed array wiring
  • Multiple grounding hole locations facilitate module grounding
  • Drainage holes prevent water buildup within the frame, and reduce the possibility of freeze thaw damage

Warranties and Certifications

  • 5 year product warranty
  • 25 year power warranty
  • UL1703.

Contact usfor complete grid-tie systems with schematic, mounts, grid-tie inverter, disconnects, etc.

Day 4 Energy       48MC electrical characteristics

Day 4 Energy 48MC chart

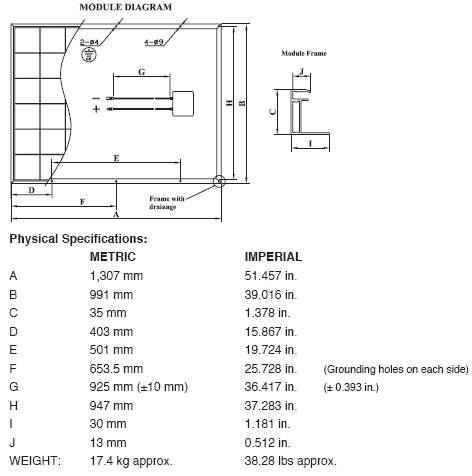

Day 4 Energy 48MC dimensions
