LG LG275S1C-B3 Solar Panel

Availability:Call For Availability

Features

No Longer Available

LG SOLAR PANELS

LG Solar
mono x

LG Solar LG275S1C-B3 Solar Panel

  • Solar module using efficient Mono X™ monocrystalline cells
  • The LG275S1C-B3 solar panel is very efficient and has an attractive black frame.
    Nominal power starts at 0%.
  • 600V or 1000V System Voltage
  • LG has developed Mono X™ solar cells to look sleek and be efficient and reliable.

LG就是S1C系列太阳能电池板都是精心设计的to benefit installers by allowing quick and easy installations throughout the carrying, grounding, and connecting stages of modules.

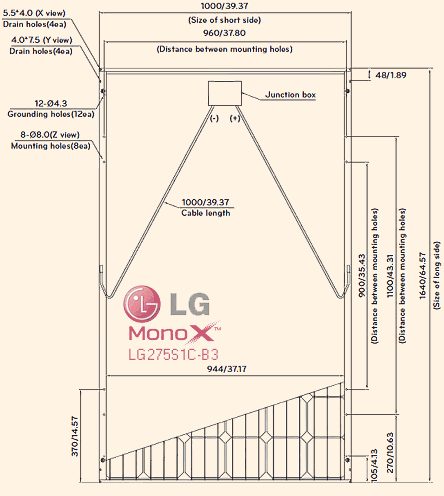

LG275S1C-B3 Dimensions

LG LG275S1C-B3 review

LG LG275S1C-B3 Solar Panel

Double click on above image to view full picture

Zoom Out
Zoom In

Specifications

LG275S1C-B3 specifications
Model Number LG275S1C-B3
STC Rating 275.0 Watts
PTC Rating 252.6
Open Circuit Voltage (Voc) 38.7 Volts
Short Circuit Current (Isc) 9.26 Amps
Frame Color Black
起源 Korea
Power Tolerance -0 / +3%
Module Efficiency 16.8 %
Area 17.8 ft²
Weight 37 lbs.
Length 64.57 in.
Width 39.37 in.
Height 1.38 in.

Manufacturer Specification Sheets

Details

Solar Electric Supply supplieswholesale commercial solar systemsandldsports乐动 .

ldsports乐动体育
LG mono-x Review
LG solar module frame
The LG 275S1C-B3 features high efficiency and durability with an aesthetically pleasing black frame.

Lightweight Yet Heavy-Duty
Weighing only 37 pounds, the LG275S1C-B3 solar panel is proven to demonstrate outstanding durability against external pressure up to 5400 Pa.

Reliable Warranties
LG stands by its products with the strength of a global corporation and sterling warranty policies. LG offers a 10 year product limited warranty and a 25 year limited linear output warranty.

Convenient Installation
LG modules are carefully designed to benefit installers by allowing quick and easy installations throughout the carrying, grounding, and connecting stages of modules.

100% EL Test Completed
All LG modules pass Electroluminescence inspection. This EL inspection detects cracks and other imperfections unseen by the naked eye.

Positive Power Tolerance
LG provides rigorous quality testing to solar modules to assure customers of the stated power outputs of all modules, with a positive nominal tolerance starting at 0%.


Certifications

Certified Laboratory

LG developed the core standard specifications for a solar module and became an official test laboratory certified by TÜV Rheinland and Underwriters Laboratories.

lg module info
