Samsung LPC247SM-08 247 Watt Solar Panel

Availability:Call For Availability

Quick Overview

Samsung takes on the Solar Challenge

Developing viable solar power systems is one of the great tasks facing the world today, and Samsung is now in the race.
We are poised to repeat our success in solar power generation. Our track record speaks for itself.

High Efficiency

Samsung solar modules deliver high efficiency, requiring less installation space and lower BOS costs.

Proven Performance

Samsung solar modules deliver more electricity under real world conditions thanks to superior temperature performance. (CEC conversion yield: 90.3% under PV USA test conditions)

Positive Power Output Tolerance

Samsung solar modules and cells avoid any power loss due to their positive output tolerance (0/ +2%) and narrow sorting range.

Low Mismatch Loss

Narrow current band allows for sort-freefield installation and optimized solar array performance.

Superior Durability

Samsung solar modules are certified to withstand high pressure: wind loads (2,400Pa), snow loads (5,400Pa).

Strict Quality Testing

Samsung solar modules are best-in-classthanks to our quality assurance system following international standard IEC61215.

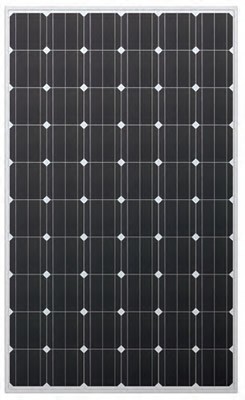

Samsung LPC247SM-08 247 Watt Solar Panel

Double click on above image to view full picture

More Views

Specifications

Physical characteristics

Cells per module		60
Cell type		Mono-crystalline
Dimensions		64.17x 38.66x1.81 in. (1630x982x46mm)
Front Glass		0.13 in.(3.2mm) Tempered glass
Weight		41 lbs (18.6kg)
Junction box	Connector Type	Bizlink S418 (MC4接入)
	IP Grade	IP 65
	Output Cable	(+) 47.24 in. (-)31.50 in.

Manufacturer Specification Sheets

Samsung Installation ManualSize: (2.68 MB)
SAMSUNG Limited Warranty 2012Size: (73.08 KB)
SAMSUNG Module Warranty 2010 UpdatedSize: (67.77 KB)

Details

		LPC241SM-08	LPC244SM-08	LPC247SM-08
Performance at Standard Test Conditions (STC) : Irradiance 1000 W/m2, AM 1.5, and cell temperature 25°C
Maximum power	Pmax(Wp)	241	244	247
Open circuit voltage	Voc(V)	37.4	37.5	37.6
Short circuit current	Isc(A)	8.54	8.58	8.62
Maximum power voltage	Vmp(V)	30.1	30.3	30.4
Maximum power current	Imp(A)	8.01	8.07	8.14
Module efficiency		15.06%	15.24%	15.43%
Performance at Nominal Operating Cell Temperature (NOCT) : Irradiance 800 W/m2, ambient temperature 20°C, wind speed 1m/s
Maximum power	Pmax(Wp)	194	196	198
Open circuit voltage	Voc(V)	37.4	37.3	37.4
Short circuit current	Isc(A)	6.84	6.88	6.89
Maximum power voltage	Vmp(V)	30.3	30.4	30.5
Maximum power current	Imp(A)	6.43	6.48	6.49

*The rated power may only vary by 0 Wp / +2.99 Wp.

Safety Ratings & Warranties
Fire Safety Classification	Class C
Certifications	UL 1703, CEC Listed
Warranty	5 years limited product warranty
Performance guarantee	10 years limited warranty of 90% power output
Performance guarantee	25 years limited warranty of 80% power output

Qualification Test
Temp cycling range	-40°Cto 85°C for 200 cycles
Damp heat test	85°C and 85% relative humidity for 1000 hr
Front load test (Snow)	5400 Pa
Rear static load test(Wind)	2400 Pa
Hailstone impact test	25 mm hail at 23 m/s from 1 m distance

System integration parameters
Maximum system voltage (IEC)	1,000 VDC
Maximum system voltage (UL)	600 VDC
Maximum series fuse rating	15 A
Maximum reverse current	20 A

Temperature coefficients
NOCT	46 ± 2°C
TC Isc	0.07%/K
TC Voc	-0.35%/K
TC Pmax	-0.48%/K

(NOCT : Nominal Operating Cell Temperature)

Packing Configuration
Container	40’HC
Piece per pallet	20
Pallets per container	26
