三星LPC244SM-08 244瓦太阳能电池板

Availability:呼吁可用性

Quick Overview

Developing viable solar power systems is one of the great tasks facing the world today, and Samsung is now in the race.
我们准备重复我们在太阳能发电的成功。我们的曲目记录本身就是这样。

High Efficiency

Samsung solar modules deliver high efficiency, requiring less installation space and lower BOS costs.

Proven Performance

由于卓越的温度性能，三星太阳能模块在现实世界的条件下提供更多电力。（CEC转换产率：PV美国试验条件下90.3％）

正功率输出容差

Samsung solar modules and cells avoid any power loss due to their positive output tolerance (0/ +2%) and narrow sorting range.

低错位损失

Narrow current band allows for 无序field installation and optimized solar array performance.

优越的耐用性

Samsung solar modules are certified to withstand high pressure: wind loads (2,400PA），雪负荷（5,400.Pa).

Strict Quality Testing

Samsung solar modules are best-in-class由于我们在国际标准IEC之后的质量保证体系61215.

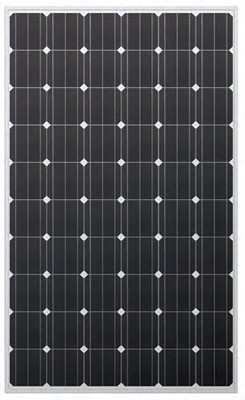

Samsung LPC247SM-08 solar panel

双击上面的图像以查看完整的图片

身体特征

Samsung Installation ManualSize: (2.68 MB)
SAMSUNG Limited Warranty 2012尺寸:( 73.08 kB）
SAMSUNG Module Warranty 2010 UpdatedSize: (67.77 KB)

		LPC241SM-08	LPC244SM-08.	LPC247SM-08.
Performance at Standard Test Conditions (STC) : Irradiance 1000 W/m2，1.5，细胞温度25°C
最大功率	P最大（WP）	241	244	247
开路电压	VOC.(V)	37.4	37.5	37.6
短路电流	Isc(A)	8.54	8.58	8.62
最大功率voltage	VMP.(V)	30.1	30.3	30.4
最大功率电流	IMP.(A)	8.01	8.07	8.14
模块效率		15.06%	15.24％	15.43%
标称工作细胞温度的性能（NOCT）：辐照度800 W / m2, ambient temperature 20°C, wind speed 1m/s
最大功率	P最大（WP）	194	196	198
开路电压	VOC.(V)	37.4	37.3.	37.4
短路电流	Isc(A)	6.84	6.88	6.89
最大功率voltage	VMP.(V)	30.3	30.4	30.5
最大功率电流	IMP.(A)	6.43	6.48	6.49

*The rated power may only vary by 0 Wp / +2.99 Wp.

安全评级和保证
Fire Safety Classification	C.
Certifications	UL 1703, CEC Listed
Warranty	5 years limited product warranty
Performance guarantee	10年限制90％电力输出保修
Performance guarantee	25年有限保修80％电力输出

Qualification Test
Temp cycling range	-40°Cto 85°C for 200 cycles
Damp heat test	85°C and 85% relative humidity for 1000 hr
前负荷测试（雪）	5400 PA
后静电负载测试（风）	2400 PA.
Hailstone impact test	25毫米距离距离为23米/秒

System integration parameters
Maximum system voltage (IEC)	1,000 VDC.
Maximum system voltage (UL)	600 VDC.
Maximum series fuse rating	15 A.
Maximum reverse current	20 A

(NOCT : Nominal Operating Cell Temperature)
