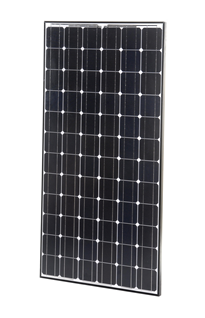

三洋Panasonic 210瓦太阳能电池板HIP-210NKHA6

For Grid-Tie Residential Solar Systems

高效率
击中® Power solar panels are leaders in sunlight conversion efficiency. Obtain maximum power within a fixed amount of space. Save money using fewer system attachments and racking materials, and reduce costs by spending less time installing per watt.

Power Guarantee
SANYO's power ratings for HIT Power panels guarantee customers receive 100% of the nameplate rated power (or more) at the time of purchase, enabling owners to generate more kWh per rated watt, quicken investment returns, and help realize complete customer satisfaction.

温度性能
As temperatures rise, HIT Power solar panels produce 10% or more electricity (kWh) than conventional crystalline silicon solar panels at the same temperature.

Proprietary Technology
击中solar cells are hybrids of single crystalline silicon surrounded by ultra-thin amorphous silicon layers, and are available solely from SANYO. HIT Power models are ideal for grid-connected solar systems, areas with performance based incentives, and renewable energy credits.

Structural Strength
击中Power panels have a double-wall black anodized aluminum frame for extra strength, and are tested to 60PSF. The panels come pre-equipped with a touchsafe junction box, USE-2 outdoor rated cables, MC4™ locking connectors, and are UL 1703 safety rated for wind, hail, and fire.

有价值的功能
击中Power solar panels operate silently, have no moving parts and are among the lightest per watt in the industry. Unique eco-packaging minimizes cardboard waste at the job site. The packing density of the panels reduces transportation, fuel, and storage costs per installed watt.

Quality Products
SANYO silicon wafers located inside HIT solar panels are made in California, USA, and the panels are assembled in an ISO 9001 (quality), 14001 (environment), and 18001 (safety) certified factory. The panels have a Limited 20-Year Power Output and 5-Year Product Workmanship Warranty.

* HIT代表具有识别薄层的异质结。新能源和工业技术开发组织（NEDO）在日本提供支持。本网站的规格，产品设计和信息可能会有所变化，恕不另行通知。

About HIT Technology

The SANYO HIT (Heterojunction with Intrinsic Thin layer) solar cell is composed of a single thin crystalline silicon wafer surrounded by ultra-thin amorphous silicon layers. This product provides industry-leading performance and value using state-of-the-art manufacturing techniques.

晶体硅太阳能电池和击中太阳能电池结构比较
通过最小化太阳能电池表面上的非常规网格区域中的发电损耗来产生高输出。

击中solar cells improve boundary characteristics and reduce power generation losses by forming impurity-free i-type amorphous silicon layers between the crystalline base and p- and n-type amorphous silicon layers.

News Release

三洋推出了新的HITPower®N系列太阳能电池板

达拉斯，德克萨斯州。- 2009年3月18日

SANYO Electric Co., Ltd. (SANYO)

The new series features the latest technological improvements including higher module output, lower voltage, space savings and lower installation costs that make the HIT Power® N Series the most efficient and competitive cost per kWh panels in the solar market today. The HIT Power® N Series solar panels will be available in North America from SANYO's authorized representatives, including SunWize Technologies, Conergy and Focused Energy from April.

Today's announcement for the HIT Power® N Series coincides with the inauguration of SANYO's newest and most high-tech module production facility. SANYO, as announced in October 2008, is expanding its Monterrey, Mexico facility, providing up to 50MW in production capacity, more than double the current output amount.

击中® stands for Heterojunction with Intrinsic Thin-layer. HIT® solar cells developed by SANYO are hybrid solar cells composed of single crystalline silicon wafers surrounded by ultra-thin amorphous silicon layers. The unique structure minimizes defects within the p/n junction of the cell, producing highly efficient cells capable of achieving up to 17.1% module efficiency while producing more power even at higher temperatures. Using HIT Power® N Series solar panels allows maximum power generation per square foot, reducing the number of panels needed. The improved technology also features a higher output range (205 - 215W) and lower voltage (Vpm: 40.7-42.0V) – which means up to 60% more capacity per string and fewer parallel connections, cutting total installation costs. Each HIT Power® N module contains 72 cells that are 5" x 5" (125mm²), compared to HIT Power® B modules which contain 96 cells that are 4" x 4" (104mm²).

打击®细胞提供优越的温度不变性ics compared to conventional crystalline silicon cells. The result is 10% - (or more) - energy produced at higher temperatures compared to standard silicon-based solar panels. All HIT Power® N Series solar panels guarantee customers receive 100% of the nameplate rated power (or more) at the time of purchase. With more kWh per rated watt, SANYO's HIT Power® N Series solar panels quicken return on investment and are ideal for areas with performance-based incentives and renewable energy credits.

The HIT Power® N series will complement the successful HIT Power® B series, which was launched in June of 2008. Like the HIT Power® B Series, HIT Power ® N series modules have enhanced materials for higher heat performance. Also, the HIT Power® B series and HIT Power® N series have similar frame structures and pre-drilled grounding and mounting holes for easy installation. The HIT Power® N series is unique, however, in its cell design and configuration.

Summary of SANYO's HIT Power® N series new features:
- Higher module output
- Lower voltage
- 节省空间
- Lower installation costs
- 恒温区的卓越性能
- Easier installation
- 双地孔选项
- MC4 locking connectors for added safety
- USE2 cables with more insulation for added safety
- 帧高度允许可互换夹子
- 静态负荷等级为60 psf

Sanyo的HitPower®N系列太阳能电池板静默操作，没有移动零件，在该行业中的最轻的最轻之一。独特的生态包装可最大限度地减少纸板包装废物。此外，HITPower®N系列太阳能电池板的包装密度有助于降低每安装瓦特的运输，燃料和储存成本。MITPower®N系列太阳能电池板内的硅晶片是在加利福尼亚制造的，然后在Sanyo认证工厂组装在墨西哥 - ISO 9001,14001和18001。有关Sanyo'sPower®太阳能电池板的更多信息，请访问：http://us.sanyo.com/Solar.

About Sanyo Solar

Sanyo's solar division was established in 1976 in Carson, California.

SALEC致力于为人类的未来做好事，创造将Sun能量转化为电力的产品。

Since 1967 Solec solar electric modules have been used worldwide in urban and remote locations. From major metropolitan areas to small villages, Solec's cost effective modules work dependably and efficiently.

In 1994, Solec combined forces with SANYO Electric, Japan. Both companies share a commitment to excellence and making strides toward improvements in the solar energy industry. These are exemplified by the numerous patents held by the companies and proprietary advances that have been made. Further, in our efforts to manufacture a superior product, Solec's modern equipment uses high quality materials.

SALEC是开发晶体硅光伏（PV）技术的主要改进的先驱。如今，许多高功率PV应用利用晶体硅单晶电池和光伏模块。

1997年，三洋推出了一个名为PIT Power 21™的产品（异质结具有内在薄层）。该21世纪的混合产物将单晶电池与非晶硅结合。结果已经令人惊讶。HIT™细胞具有在实验室条件下实现令人难以置信的20％效率等级。

SALEC继续找到利用太阳能能量提供替代能源的方法。他们的目标是通过将阳光降到地球来保护我们的环境。
