SM50-H-55瓦太阳能电池板

55 Watt Solar Panel

High-Quality - High Efficiency - Compatible

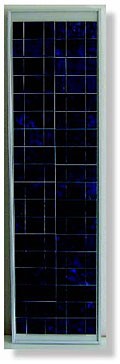

The XC55s is a high-efficiency polycrystalline solar module. This solar module will drop in to replace or add to any solar system using Shell or Siemens SM55 solar modules.

它还可以作为SM50-H的替代品，虽然它越长4英寸，但宽度与SM50-H相同。具有相同的13.7“宽度，它将适合许多现有坐骑。

Compare to the Siemens SM55 / Shell SM55

This solar module uses multicrystalline technology. Encapsulation beneath high transmission tempered glass is accomplished using an advanced, UV resistant thermal setting plastic. The ethylene vinyl acetate encapsulant cushions the solar cells within the laminate and protects the cells from etching. The rear surface of the module is completely sealed from moisture and mechanical damage by a continuous high strength polymer sheet.

The XC55s uses a reinforced anodized aluminum frame like the original Siemans equivalent. These are designed to meet our high quality standards for corrosion resistance. The standard junction box makes wiring a snap for anybody familiar with the Siemens Solar Powermax SM55.

Ideal for Stand-Alone Solar Power Systems for:

· Villages in remote areas
· Homes and summer cottages
· Microwave / Radio repeater stations
农村医疗设施
· Emergency communication
· Water quality and environmental data monitoring
·饮用水和牲畜水泵
· Small-scale irrigation pumping
· Cathodic protection
· Aviation obstruction lights
·环境数据监控
· Railway signals
· 街道照明
· Small-scale desalination

尺寸：长度：50.9“x宽：13.7”x深度：1.8“
重量（没有盒子）：约。15.43磅。

Electrical Data Maximum Power (Pmax) 55瓦 Maximum Power Voltage (Vpm) 17.4 Volts Maximum Power Current (Ipm) 3.16安培 Open Circuit Voltage (Voc) 21.7 Volts 短路电流（ISC） 3.4 Amps Nominal Voltage 12 VDC 系列保险丝评级 10 Performance Tolerance ± 10%

Cells 每个模块号码 36 Cell Technology Polycrystalline Cell Shape Rectangular Not sold retail. Minimum order 100 units. 政府，OEM和工业客户， pleasecontact us定价

免费电话费(877) 297-0014或者email usfor expert assistance or to order.
