Solarland SLP075-12 75W Class 1 Division 2 Solar Panel w/ Rugged Frame

Availability:Call For Availability

Features

Solarland solar panels logo
Solarland SLP075-12 Class 1 Division 2 Solar Panel w/ Rugged Frame

The 75 watt SLP075-12 solar panel is rugged and CSA Certified.

oil and gas pipeline in a hazardous location
  • Certified for Hazardous Environments
  • C1D2 - Class 1, Division 2
  • Certified to UL1703 and cUL1703
  • Nominal 12V DC for standard output
  • Outstanding low-light performance
  • Heavy-duty anodized frames
  • High transparent low-iron,tempered glass
  • Rugged design to withstand high wind pressure, hail and snow load
  • Aesthetic appearance

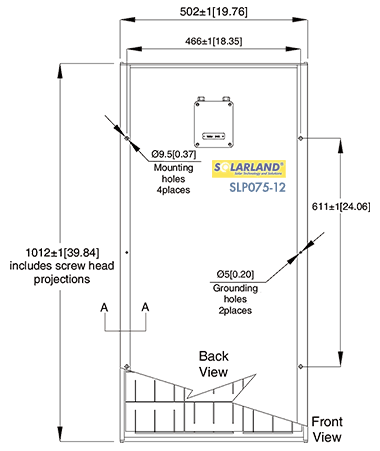

Solarland SLP075-12 Dimensions

SLP075-12 Dimensions

类1迪vision 2 Solar Panel Applications

类1迪vision 2 wireless pipeline monitoring
Oil pipeline wireless monitoring
C1 D2天然气管道阴极保护
Gas pipeline cathodic protection

Authorized Solarland USA Reseller

Solarland SLP075-12 75 watt Class 1 Division 2 C1D2 Solar Panel

Double click on above image to view full picture

Zoom Out
Zoom In

Specifications

Solarland Class 1 Division 2 CSA C1D2
Solarland SLP075-12 (Class 1 Division 2) Solar Panel
Solarland Product Code 075011234A
STC Rating 75 Watts
Voltage @ Pmax (Vmp) 18.4 Volts
Open Circuit Voltage (Voc) 22.0 Volts
Current at Pmax (Imp) 4.08 Amps
Frame Color Silver Anodized
Power Tolerance -5 / +5%
Length 39.84 in.
Width 19.76 in.
Height 1.97 in.
Weight 14.77 lbs.

ldsports乐动体育

类1迪vision 2 Solar Systems

Great for remote oil field monitoring applications or any application requiring that C1D2 certification. These Solarland modules are also available in our complete line of packaged Class I Division 2 solar systems.Contact us专家建议。

Manufacturer Specification Sheets

Details

The Solarland SLP075-12 solar panel is
CSA Class 1 Division 2 Certified.
CSA Class 1 Division 2 Approved

Solarland SLP075-12 75 Watt Class I Division II Solar Panel Review

The rugged SLP075-12 multicrystalline solar panel is CSA Certified to UL1703 and cUL1703 and Certified for C1D2 - Class 1, Division 2 Hazardous Environments. All the models feature a 2” rugged aluminum mounting frame with a conduit-ready sealed junction box and easy to identify wiring terminals.

类1迪vision 2 for use in hazardous locations

类1迪vision 2 Approval means that the world's most trusted name in testing, CSA, has independently certified these solar modules as safe for use in the highest level of hazardous locations like "potentially explosive" where there is the possible presence of flammable gases, vapors or liquids.

The Solarland SLP 075-12 solar panel meets CSA's rigorous hazardous location safety standards. No matter what your location, you can safely and reliably generate power for equipment anywhere the sun shines, even in the most hazardous locations.Contact us专家建议。
