Trina Solar TSM-250PA05 Solar Panels

Availability:Call For Availability

Features

The 250 watt TSM-250PA05 has a great price per watt!

  • 15.3% max efficiency
  • 250W max power output
  • 10 Year product warranty
  • 25 Year linear power warranty

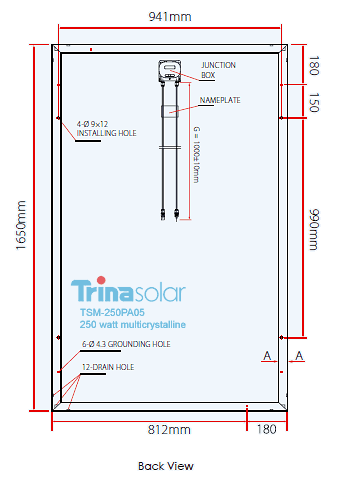

TSM-250PA05 Dimensions

TSM-250PA05 review

CompleteTrina Solar Systemsavailable.

Trina TSM-250PA05 solar panels

Double click on above image to view full picture

Zoom Out
Zoom In

Specifications

Trina Solar

Electrical Data @ STC TSM-250 PC/PA05
Peak Power Watts-PMaX(Wp) 250
PTC Rating 227.5
Power Output Tolerance-PMaX(%) 0/+3
最大功率Voltage-VMP(V) 30.3
Maximum Power Current-iMPP(a) 8.27
Open Circuit Voltage-VOC(V) 37.6
Short Circuit Current-iSC(a) 8.85
Module Efficiencyηm(%) 15.3
Values at Standard Test Conditions STC (air Mass aM1.5, irradiance 1000W/m²,
Cell Temperature 25°C). Power measurement tolerance: ±3%

Manufacturer Specification Sheets

View FileTrina Solar TSM-250PA05Size: (210.81 KB)

Details

High Efficiency Trina Solar panels can bear snow loads up to5400Pa
Wind loads up to2400Pa
Proven Performance Guaranteed power output
0~+3%
Output Tollrence High performance under low light conditionscloudy days, mornings and evenings
Low Mismatch_loss Manufactured according to international Quality and Environment Management System StandardsISO9001, ISO14001
Superior Durability MC4photovoltaic connectors increase system reliability
Mechanical Data
Solar cells Multicrystalline 156 × 156mm (6 inches)
Cell orientation 60 cells (6 × 10)
Module dimensions 1650 × 992 × 35mm (64.95 × 39.05 × 1.37 inches)
Weight 18.6kg (41.0 lb)
Glass high transparency solar glass 3.2mm (0.13 inches)
Frame anodized aluminium alloy
J-Box iP 65 rated
Cables Photovoltaic Technology cable 4.0mm² (0.006 inches²),
1000mm (39.4 inches)
Connector Original MC4

panel performance

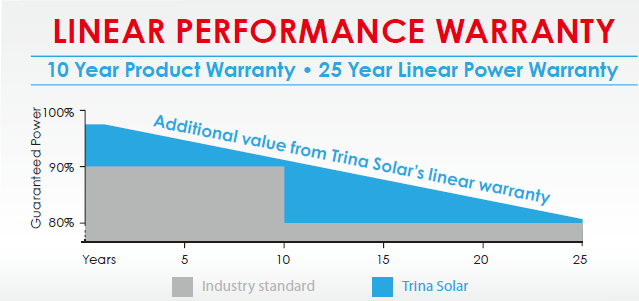

Trina Solar Panel Linear Performance Warranty

About Trina Solar

Founded in 1997, Trina Solar (NYSE: TSL) has established itself as a leader in the solar community with its vertically integrated business model. Our modules and system solutions provide clean solar power in on-grid and off-grid residential, commercial, industrial and utility-scale systems.

With more than 22 offices worldwide, Trina Solar has partnerships with leading installers, distributors, utilities and developers in all major PV markets. Trina Solar is committed to driving smarter energy choices.

Contact usfor the latest wholesale discount sale price or to buyTrina TSM-250PA05 solar panels.
