1 kW.MAPPS Flight Path Warning Light Solar System - US Air Force Base, Kentucky

1 kW.Flight Path Warning System Solar Battery Powered MAPPS system

This 1,050 Watt MAPPS system was installed at the US Air Force airbase at Fort Campbell, Kentucky. It is used to power a laser levelling guidance system that assists the pilots in their landing. It is used primarily in war zones where the pilots need to perform "hot landings" where their glide path is very steep and this system alerts them if they are coming in "too hot". Solar Electric Supply has deployed these systems and systems like this one to Africa for the United Nations and in the Middle East for the US Military.

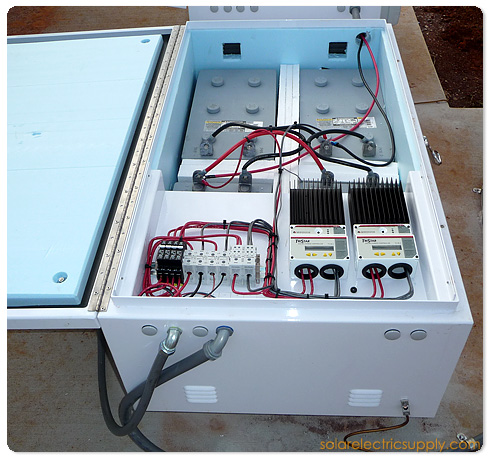

This system included a battery charger for emergency generator charging, and an outdoor NEMA 3R insulated battery enclosure that is powder-coated white aluminum.

添加了电池充电器进行充电 the batteries with a generator if needed.

This MAPPS Solar System Features:

• SES rugged industrial solar modules
• Sealed Deka batteries
• Morningstar TriStar controller
• Weatherproof battery/controller enclosure
• Heavy-duty aluminum mounting structure
• Color-coded, pre-cut wiring harness
• 安装手册和系统原理图
• 乐动安卓app太阳能电源系统设计和支持
